| Product Attribute | Attribute Value |
|---|---|
| Part Number | IXFN52N90P |
| Manufacturer | IXYS / Littelfuse |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-227B |
| Series | Polar™ |
| Rds On (Max) @ Id, Vgs | 160 mOhm @ 26A, 10V |
| Power Dissipation (Max) | 890W (Tc) |
| Packaging | Tube |

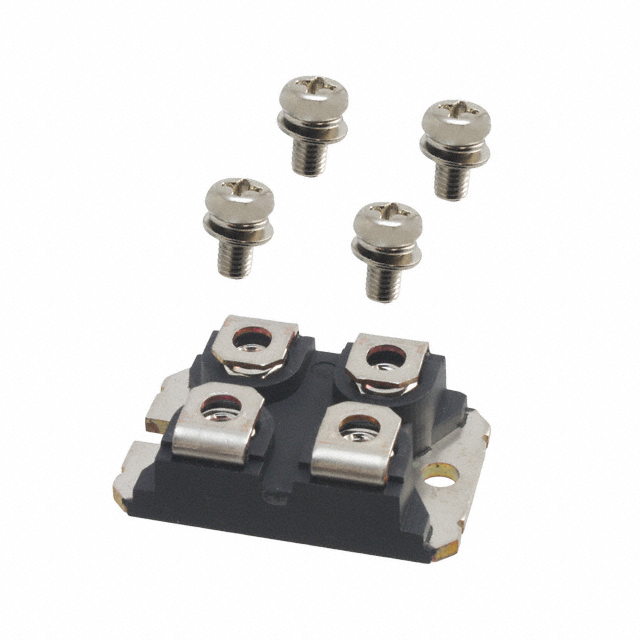

| Package / Case | SOT-227-4, miniBLOC |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 19000pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 308nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 900V |
| Detailed Description | N-Channel 900V 43A (Tc) 890W (Tc) Chassis Mount SOT-227B |
| Current - Continuous Drain (Id) @ 25°C | 43A (Tc) |
